Explore how custom lighting layouts enhance energy efficiency, safety, and productivity in warehouses with tailored LED solutions.

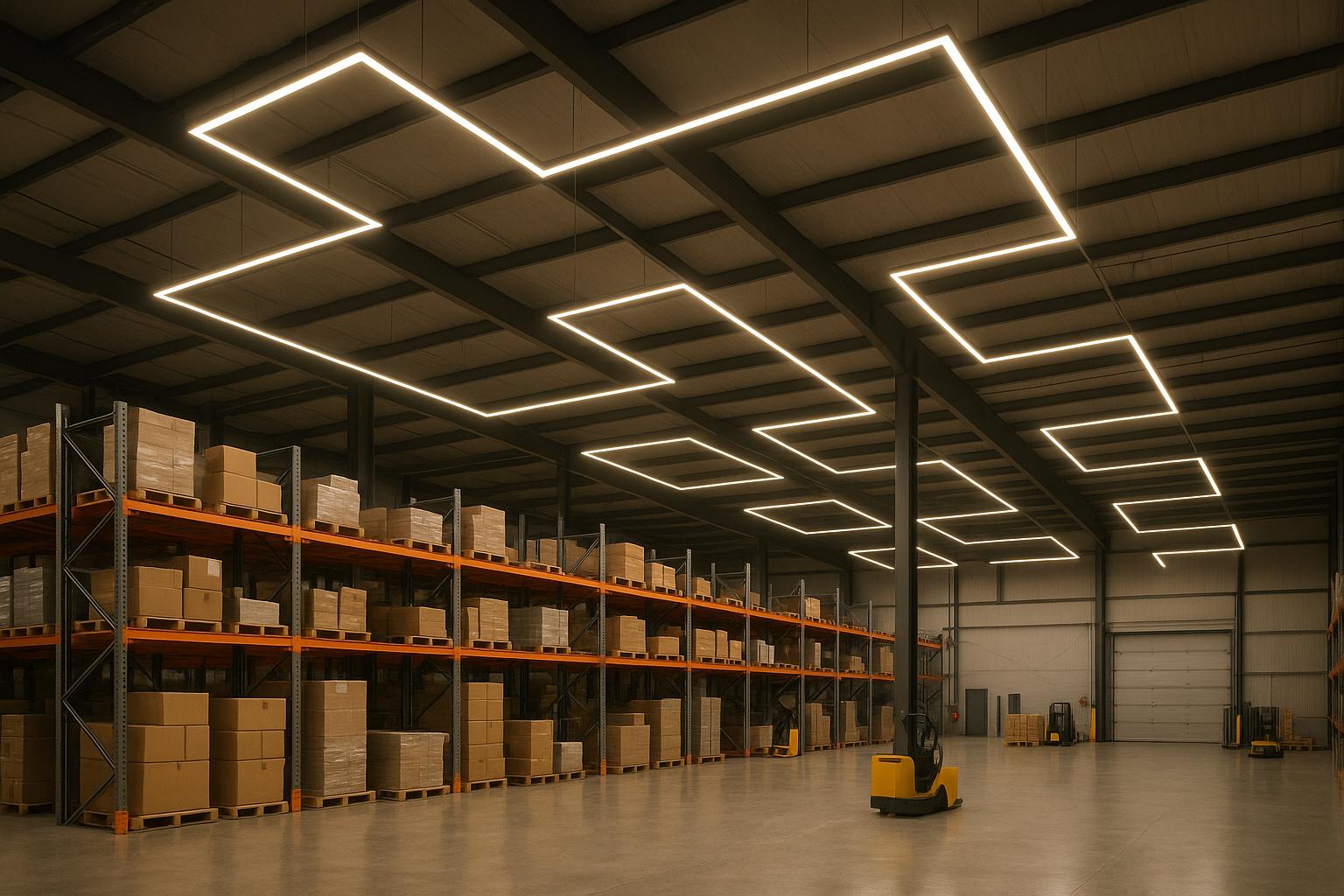

Lighting in warehouses isn’t a one-size-fits-all solution. Every facility has unique challenges like high ceilings, tight racking systems, and varied work areas. Custom lighting layouts address these by optimizing fixture placement for better energy savings, safety, and productivity.
Key Benefits of Custom Lighting Layouts:
How to Get Started:
Financial Perks:
Custom lighting layouts transform warehouses into safer, more efficient spaces while cutting costs. Start with a professional evaluation to design a system tailored to your facility.
Before diving into the design of your warehouse lighting system, it’s crucial to evaluate your facility’s specific needs. This initial assessment sets the stage for creating a lighting system that aligns with operational demands while meeting safety and regulatory standards. Every decision - from the type of fixtures to their placement - hinges on this evaluation.
The characteristics of your warehouse play a central role in determining its lighting setup. For instance, warehouse size directly impacts how many fixtures you’ll need, while ceiling height influences both the wattage and beam angles of those fixtures. Taller ceilings generally require more powerful fixtures with narrower beams to ensure adequate lighting reaches the floor.
Aisle and rack configurations also pose unique challenges. Shadows created by racks often call for vertical lighting to properly illuminate the faces of the shelves. The spacing between racks is another consideration - narrower aisles may require a more strategic approach to fixture placement to avoid dark spots.
Different operational zones within your warehouse have varying lighting needs. Open floor areas, for example, prioritize horizontal lighting for general movement and safety, while loading docks demand bright, even lighting to ensure accurate sorting and safe truck operations. Take note of the specific dimensions and activities in each zone during your assessment.
Surface reflectivity is another critical factor. Light-colored walls, ceilings, and floors reflect more light, meaning fewer fixtures may be needed. On the other hand, darker surfaces absorb light, which could necessitate additional fixtures to achieve the desired brightness. Be sure to record these details as part of your evaluation.
| Ceiling Height | Ideal Lumen Output per Fixture | High Bay Spacing |
|---|---|---|
| 20–30 ft | 22,000–35,000 lumens | 15–25 ft |
| 31–40 ft | 35,000–47,000 lumens | 19–29 ft |
| 40+ ft | 47,000+ lumens | 30–40 ft |
The type of work being done in each area of your warehouse determines the necessary illumination levels. For example, storage areas typically require less light since they involve minimal detailed work. A brightness level of 100–200 lux (9–19 footcandles) is usually sufficient for these zones.
For picking operations, higher lighting levels are essential to ensure accuracy when workers locate and retrieve items. Manned aisles should maintain at least 150 lux (14 footcandles), while unmanned aisles can get by with as little as 20 lux (2 footcandles). Additionally, vertical lighting is crucial in these areas - rack faces should have over 200 lux (19 footcandles) to make it easy for workers to read labels and identify products.
Packing and dispatch areas demand the highest levels of illumination, around 300 lux (28 footcandles). These zones involve detailed tasks like reading shipping labels, performing quality checks, and completing documentation. Poor lighting here can negatively affect both accuracy and productivity.
Loading docks present a unique challenge due to the mix of indoor and outdoor lighting. These spaces need consistent, bright illumination to ensure smooth transitions between trailer interiors and the warehouse floor, keeping operations safe and efficient.
Your facility’s operational schedule should also factor into your lighting plan. Areas that operate 24/7 may benefit from smart lighting controls that adjust brightness based on occupancy. Meanwhile, storage zones might only need motion-activated lighting during off-hours to save energy.
Compliance with regulatory standards is non-negotiable when designing your warehouse lighting. OSHA sets minimum illumination levels to ensure worker safety and prevent accidents. These standards vary by work area and also include requirements for emergency lighting systems.
The Illuminating Engineering Society (IES) provides guidelines covering illuminance levels, uniformity ratios, and glare control. These recommendations aim to create lighting conditions that enhance both safety and productivity across different warehouse activities.
Additionally, local energy codes like ASHRAE 90.1 and IECC outline energy efficiency requirements for new installations and major retrofits. These codes often specify limits on lighting power density (measured in watts per square foot) and mandate the use of automatic controls in certain areas. Meeting these standards is not only essential for obtaining permits but can also make your facility eligible for utility rebates and tax incentives.
Emergency lighting is another critical aspect. Exit routes, stairwells, and key operational areas must maintain minimum brightness during power outages. This requires strategically placed emergency fixtures and battery backup systems, which should be tested regularly to ensure compliance.
To streamline the process and avoid costly adjustments later, consult with lighting professionals early on. Addressing compliance and design considerations during the initial assessment will save time and resources down the line.
After evaluating your warehouse lighting needs, selecting the right LED fixtures and controls is crucial for achieving both energy savings and top-notch performance. Modern LEDs can reduce energy consumption by 50-80%, offer excellent brightness, and last much longer than older lighting technologies. These choices lay the groundwork for a fully optimized warehouse lighting system.
Different areas of a warehouse require specific LED fixtures to ensure the best lighting performance.
Mounting options depend on the ceiling height and application. Suspended mounts bring light closer to work surfaces, surface mounts are ideal for lower ceilings, and bracket mounts allow for adjustable angles in specialized tasks.
When choosing LED fixtures, several specifications directly influence their efficiency and performance:
| Specification | Recommended Range | Impact on Performance |
|---|---|---|
| Efficacy | 150-190 lm/W | Higher values mean lower energy costs |
| Color Temperature | 4000K-5000K | Cooler temps boost alertness and visibility |
| CRI | 80+ | Improves color accuracy for better workflow |
| IP Rating | IP65+ | Ensures durability in challenging conditions |
Another critical factor is fixture lifespan. LED fixtures typically last 50,000-100,000 hours, far exceeding the 10,000-20,000 hours offered by older fluorescent or HID lamps. This extended lifespan lowers maintenance costs and minimizes disruptions.
Adding smart controls to LED fixtures can further enhance energy efficiency.
Combining LED fixtures with smart controls creates a dynamic lighting system that adapts to your warehouse's needs while minimizing energy waste. For example, replacing 400W metal halide fixtures with 150W LED high bays in a 20,000 sq. ft. warehouse can result in thousands of dollars in annual savings.
Creating a warehouse lighting layout requires careful planning and precise calculations to ensure even, effective illumination. A well-thought-out lighting system not only boosts safety and productivity but also enhances energy efficiency. A great starting point? Use photometric plans to analyze your space and guide your design.
Photometric plans are a powerful tool for designing efficient lighting systems. These plans simulate how light will distribute across your space, helping you identify and address dark spots before installation. To get started, input key details like your warehouse's dimensions, ceiling height, racking setup, and surface reflectivity. The software then calculates illuminance levels (measured in footcandles or lux) across various points, allowing you to fine-tune fixture placement and avoid lighting inconsistencies.
For the best results, aim for a ceiling reflectance of 60% and a floor reflectance of 40%. Photometric plans also help ensure compliance with recommended standards. For example, general storage areas typically require 100–200 lux, while packing and dispatch zones need 200–300 lux. Areas where detailed tasks are performed may demand even brighter lighting.
Where and how you position fixtures can make or break your lighting design. Factors like racking arrangements and aisle configurations often have a bigger impact on the layout than the overall building size. For warehouses with high ceilings (20 to 40+ feet), high bay fixtures are the go-to choice. Spacing these fixtures 15 to 40 feet apart - depending on their lumen output and beam angle - can provide optimal coverage. A common setup involves placing high bay luminaires on 20' x 24' centers, delivering an average illumination of over 20 footcandles with a contrast ratio of around 3:1.
The mounting method also plays a critical role in achieving effective illumination. Options like suspended, surface, bracket, or pipe mounting should align with your warehouse's layout to minimize shadows and ensure even lighting between racks and aisles. Once the fixtures are installed, fine-tune the vertical and horizontal lighting balance to achieve full coverage.
A successful lighting layout strikes the right balance between vertical and horizontal illumination. Horizontal lighting ensures safe movement and visibility on the floor, while vertical lighting is essential for tasks like reading labels and accessing items on high shelves. Here’s a quick reference for recommended lux levels:
| Area Type | Recommended Illuminance (lux) | Notes |
|---|---|---|
| General Storage | 100–200 | For general movement and storage |
| Packing/Dispatch | 200–300 | For detailed tasks and quality control |
| Vertical Shelf Face | >200 | For reading labels and identifying items |
| Unmanned Gangways | 20 | Minimal access areas |
| Manned Gangways | 150 | Areas with regular staff movement |
To achieve this balance, combine different types of lighting. Overhead high bay fixtures provide general illumination, while linear LEDs in aisles brighten vertical surfaces. Task lights can be added at workstations for detailed tasks. Aim for uniformity ratios of 0.45 or higher and a glare index below 25 to reduce eye strain and improve worker comfort.
Adding smart lighting controls can take your setup to the next level. Features like motion sensors can dim lights in low-traffic areas and brighten active zones, adapting to your warehouse's needs throughout the day. These controls can also adjust lighting levels based on available natural light, ensuring an energy-efficient and responsive system.
For expert advice and custom solutions, consult professionals like the Luminate Lighting Group to design a layout tailored to your warehouse’s unique requirements.
Good lighting plays a huge role in making workplaces safer and more efficient. When employees have clear visibility, they’re less likely to make mistakes, can work faster, and are better equipped to avoid accidents that could disrupt operations or cause injuries.
Shadows and glare are two of the biggest obstacles to maintaining a safe warehouse environment. Shadows can obscure hazards, while glare strains the eyes and reduces accuracy.
The solution? Thoughtful placement of light fixtures. Position fixtures strategically to avoid dark spots behind tall shelves or equipment. For glare, use fixtures with diffusers or optics that spread light evenly, preventing overly bright spots in workers’ sightlines.
To achieve optimal lighting conditions, target uniformity ratios of 0.45 or higher and keep the glare index below 25 for visual comfort. A contrast ratio of about 3:1 between the brightest and dimmest areas works well in open spaces, ensuring no area is excessively bright or dark compared to its surroundings. These adjustments create a safer and more comfortable working environment while meeting the specific illuminance needs discussed below.
Different tasks and areas in a warehouse require varying levels of lighting to ensure safety and efficiency. Getting these levels right is key.
| Area Type | Illuminance (lux) | Illuminance (footcandles) | Purpose |
|---|---|---|---|
| General Storage | 100–200 | 10–20 | Safe movement and basic visibility |
| Packing/Dispatch | 300 | 30 | Detailed tasks and quality control |
| Manned Storage Racks | 150 | 15 | Regular staff access and picking |
| Unmanned Storage Racks | 20 | 2 | Minimal access areas |
| Vertical Shelf Face | >200 | >20 | Reading labels and product identification |
In areas where workers handle small parts or perform inspections, higher illumination levels may be necessary for precision work.
To meet these needs, consider combining high bay lighting for general illumination with task lighting for specific work areas. High bay fixtures can light up large spaces, while task lighting ensures brighter, focused light at workstations, packing areas, or inspection zones. This approach avoids over-lighting the entire space, saving energy and preventing discomfort.
Emergency lighting is crucial for safety during power outages or emergencies. It’s more than just a precaution - it’s a legal requirement under OSHA and NFPA 101 Life Safety Code standards.
Emergency lighting should provide at least 1 footcandle (10 lux) along exit routes, stairwells, and critical areas. It must activate automatically during power failures and last long enough to allow safe evacuation. Common options include battery-backed fixtures or systems powered by generators.
When planning emergency lighting, ensure coverage for all exit paths and areas where employees might be during an outage. Regular testing and maintenance are essential - non-functional emergency lights can render the entire system useless.
Smart lighting controls can further enhance safety and efficiency. Motion sensors ensure lights turn on when workers enter a space and dim when it’s unoccupied, balancing safety with energy savings. Dimmers allow for adjustments based on tasks, time of day, or natural light, improving comfort for workers across different shifts.
Upgrading to well-designed LED lighting systems can transform warehouses. Facilities often see energy savings of 50–80%, along with improved light quality, reduced maintenance needs, and a safer workplace. Better visibility, reduced eye strain, and consistent lighting create an environment where employees can work confidently and productively.
For warehouses aiming to improve their lighting systems, consulting experts like Luminate Lighting Group ensures compliance with operational needs and safety codes while maximizing energy efficiency and available rebates.
Custom lighting layouts offer more than just lower electricity bills - they deliver measurable financial returns through energy savings, incentives, and long-term operational improvements.
Start by comparing your current lighting system to a potential LED upgrade. For example, swapping out 400W metal halide fixtures for 150W LED high bays can slash energy usage by over 60% [2,13]. Adding smart controls, like motion sensors or dimmers, can cut energy use even further - by another 20–30% - by adjusting lighting based on occupancy or specific tasks [2,13].
To figure out your annual savings, multiply the total kilowatt-hours saved by your local electricity rate. At the average U.S. rate of $0.12 per kWh, saving 500,000 kWh annually translates to about $60,000 in reduced energy costs.
LED retrofits typically pay for themselves within 1 to 3 years. Take this example: a 100,000-square-foot warehouse replaced 200 metal halide fixtures (400W each) with 150W LED high bays and installed motion sensors. Their energy costs dropped from $96,000 to $36,000 annually, saving $60,000 each year. After accounting for rebates, the total project cost was $80,000, resulting in a payback period of just over one year [2,13]. Plus, the long lifespan of LED fixtures adds to the overall return on investment.
Beyond energy savings, financial incentives can make LED upgrades even more appealing. Utility rebates often cover 10–50% of project costs, typically based on energy savings. These rebates might be calculated at around $0.10 per watt reduced or roughly $30 per qualifying LED fixture. However, most programs require pre-approval and detailed documentation.
In states like Texas and Arkansas, companies like Luminate Lighting Group help businesses navigate rebate programs such as Oncor. Their expertise ensures smooth pre-qualification, paperwork management, and timely reimbursement, which shortens payback periods and boosts ROI.
Another major opportunity is the federal 179D tax deduction. Building owners can deduct up to $1.80 per square foot for energy-efficient lighting upgrades that cut energy consumption by at least 25% compared to ASHRAE standards. In the earlier example, the 100,000-square-foot warehouse qualified for a $180,000 179D tax deduction. Combined with $20,000 in utility rebates and $60,000 in annual energy savings, these benefits made the project a no-brainer.
Custom lighting layouts also play a key role in meeting sustainability goals and staying compliant with energy codes. Efficient LED designs, paired with precise photometric planning, ensure adherence to current regulations and prepare facilities for future updates. This not only boosts operational efficiency but also ensures regulatory compliance.
Standards like LEED certification often include specific lighting efficiency benchmarks. Meeting these requirements can increase property values, reduce insurance costs, and attract eco-conscious tenants. Additionally, energy-efficient upgrades can enhance corporate sustainability reporting and improve access to capital.
To ensure success, it’s crucial to monitor and document performance. Collect baseline energy data before the upgrade and track post-installation usage through utility bills and commissioning reports. Smart lighting systems with real-time data capabilities make it easier to verify savings and uncover new optimization opportunities [2,13].
Working with experienced providers like Luminate Lighting Group can help you tap into rebate programs, tax incentives, and compliance expertise. By doing so, warehouses can maximize financial returns while meeting both operational and regulatory needs. These combined benefits highlight the value of a well-planned, energy-efficient lighting strategy as part of a comprehensive warehouse design approach.
Designing lighting for a warehouse isn’t just about installing fixtures - it’s about creating a system that balances efficiency, safety, and functionality. To do this effectively, you need to start with a detailed assessment of your warehouse’s unique characteristics, such as ceiling height, racking layout, and activity zones. High-bay LED fixtures, when spaced strategically, ensure even light distribution across the space.
One of the most impactful upgrades you can make is switching to energy-efficient LED lighting combined with smart controls. These systems offer major energy savings. Features like motion sensors and dimmers adjust lighting based on occupancy and tasks, ensuring energy isn’t wasted in unused areas.
Another critical step is photometric planning. By using simulation software, you can map out light distribution to avoid areas that are too dim or too bright. This planning ensures compliance with energy codes and meets both safety and productivity standards.
The financial benefits of upgrading to a tailored lighting system go beyond just lower electricity bills. Rebates and tax deductions make LED retrofits an even smarter investment, adding significant value to the upgrade.
From a safety and productivity perspective, proper lighting eliminates shadows and glare, making the workspace safer and more efficient. This improves inventory accuracy, reduces accidents, and enhances worker performance - key elements for staying competitive in warehouse operations.
Partnering with experts can make a huge difference. Companies like Luminate Lighting Group offer end-to-end solutions, from assessment to installation and rebate management. This kind of comprehensive service ensures you maximize energy savings, financial returns, and operational efficiency while minimizing disruptions.
Custom lighting layouts cater specifically to the unique demands of warehouse settings, ensuring the space is well-lit for essential tasks. Better visibility plays a key role in reducing risks like slips, trips, and falls, while also helping workers operate equipment and move through the area with confidence and safety.
Beyond improving safety, well-planned lighting can enhance productivity by reducing eye strain and fatigue. Bright, evenly distributed light allows workers to stay focused and efficient, particularly in tasks that require precision or close attention to detail. A carefully designed lighting setup can also make the work environment more comfortable and uplifting, which can have a positive impact on overall performance.
When planning lighting for a warehouse, it’s crucial to address the specific needs of each operational area. Factors like the tasks performed, required light levels for safety and efficiency, and the energy consumption of the system should guide your choices. For instance, storage zones benefit from consistent, shadow-free lighting, while workstations often need brighter, more concentrated light for detailed tasks.
Ceiling height is another critical consideration since it impacts the type of fixtures and how the light is distributed. To further optimize energy use, integrating motion sensors or automated controls can be particularly effective in areas with low foot traffic. A well-thought-out lighting plan not only boosts safety and productivity but also helps lower energy expenses and aligns with energy-saving goals.
Smart lighting controls - like motion sensors, daylight harvesting systems, and programmable timers - play a big role in cutting down energy use in warehouses. By ensuring lights are only on when needed, these systems automatically adjust brightness based on occupancy and the amount of natural light available, helping to eliminate wasted energy.
But the benefits go beyond energy savings. These controls also boost productivity by creating adaptable, well-lit environments that suit the demands of warehouse tasks. For instance, task-specific lighting can sharpen visibility in critical work areas, while features like automated dimming help reduce glare and ease eye strain. The result? A workspace that's not only safer but also more comfortable for employees.
