Occupancy sensors are key to cutting energy costs and meeting U.S. energy codes in commercial spaces. But their effectiveness depends on proper setup, regular performance checks, and accurate documentation. This guide breaks down how to evaluate these sensors across three areas: calibration, placement, and performance tracking.

Key Takeaways:

• Calibration: Adjust sensitivity, time delay, and coverage per manufacturer guidelines. Test for response time, detection accuracy, and false triggers.
• Placement: Ensure proper mounting height and position to avoid blind spots and interference.
• Performance Monitoring: Track detection accuracy, response time, and hold time. Maintain detailed records for audits and rebates.

Regular testing and maintenance ensure sensors save energy, comply with standards like ASHRAE 90.1, and qualify for tax incentives like Section 179D. Professional support can simplify documentation and improve system reliability.

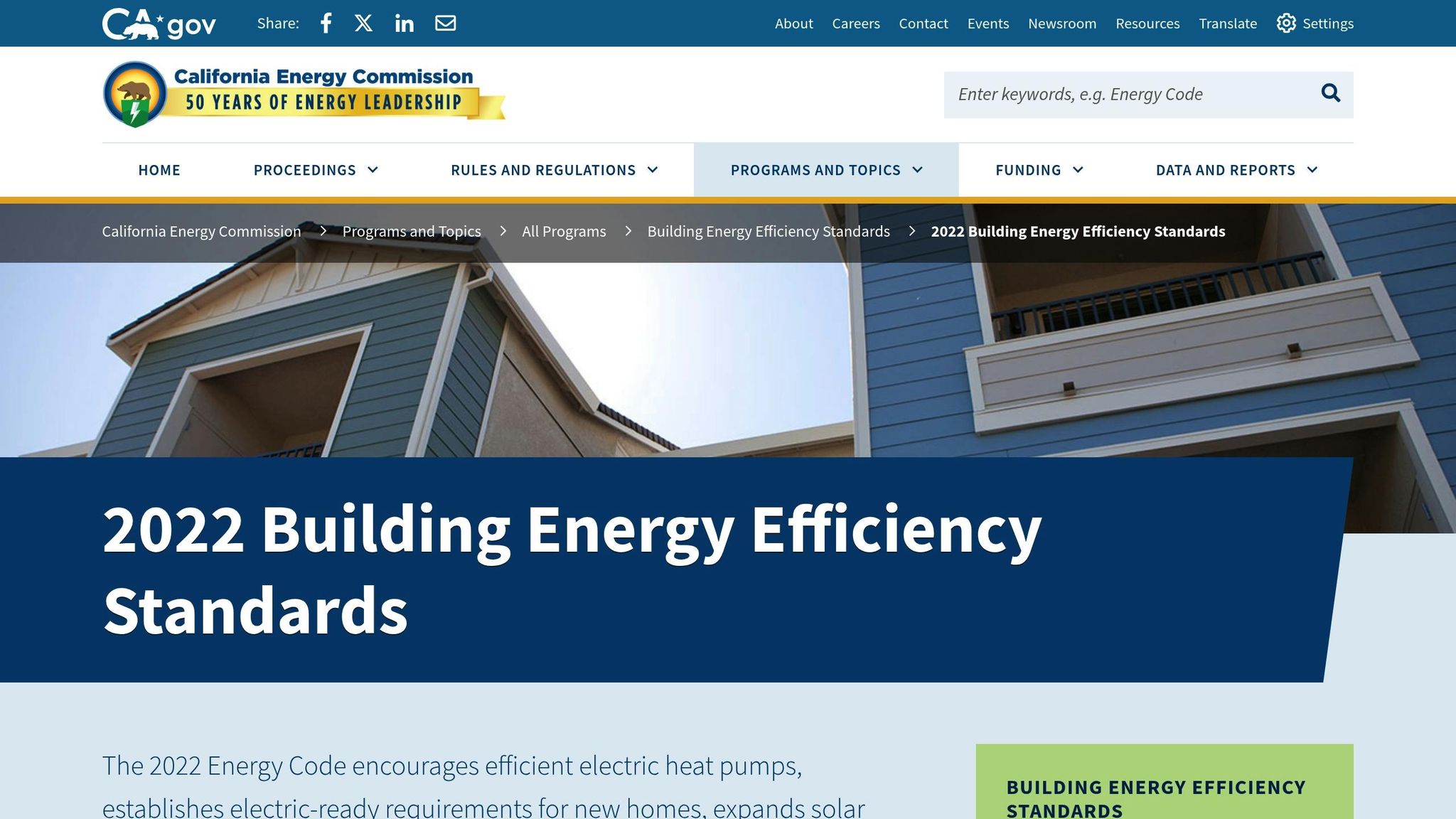

How to test occupancy sensor in large open area for Title 24 compliance

Sensor Calibration and Testing

Getting sensor calibration right is essential for ensuring occupancy sensors work as they should. Proper calibration not only saves energy but also helps maintain comfortable and effective lighting conditions.

Calibration Basics

Start by checking the manufacturer's guidelines to correctly set up each type of sensor and avoid common installation mistakes.

• Sensitivity settings: Adjust these so sensors can detect movement appropriately. For PIR sensors, set them to pick up normal walking speed at the farthest point in the coverage area. For ultrasonic sensors, fine-tune them to ignore vibrations from HVAC systems and other background noise.
• Time delay settings: This determines how long lights stay on after the last movement is detected. Offices typically work best with a delay of 10–15 minutes, while warehouses may need shorter delays of 5–10 minutes.
• Coverage patterns: Align the sensor's mounting angle and detection zones with the room's layout and traffic flow. This minimizes false triggers and ensures accurate detection.
• Temperature compensation: For PIR sensors, this is especially important in spaces with fluctuating temperatures. Set the sensor’s threshold 2–4°F above the ambient temperature to avoid false triggers from heat sources like sunlight or heating equipment.

Once these settings are in place, test the sensors to confirm they’re working as expected.

Initial Testing Parameters

Testing ensures that sensors perform reliably under real-world conditions. Here’s what to check:

• Response time: Measure how quickly the sensor activates the lights when someone enters the area. Walk through the space at a normal pace and record the activation time. High-quality sensors should respond within 1–2 seconds.
• Detection accuracy: Compare the sensor’s actual coverage area to the manufacturer’s specifications. Use a grid pattern to test detection at various points, noting any blind spots or inconsistent responses. Pay close attention to areas like corners, behind furniture, or near the coverage edges.
• False positives: Monitor sensors in an unoccupied space for 24–48 hours to see if they activate unnecessarily. Ideally, this should happen no more than 2–3 times per day.
• False negatives: Test whether the sensor misses actual occupancy. Have someone perform typical activities - walking, sitting, standing, or working - throughout the coverage area. Note any activities or locations where the sensor fails to keep the lights on.
• Environmental conditions: Test the sensor under different scenarios, such as varying times of day, weather conditions, and HVAC settings. Factors like temperature changes, air movement, and lighting can all impact performance.

Maintaining Calibration Records

Keeping detailed calibration records is crucial for audits, energy code compliance, and long-term maintenance.

• Performance baselines: Record key metrics like response times, detection accuracy, and environmental conditions during the initial calibration. These benchmarks help identify performance issues later and guide maintenance schedules.
• Compliance documentation: For utility rebates or tax incentives, you’ll need thorough records. Include manufacturer calibration certificates, installer credentials, and test results showing the sensors meet the required standards. Some rebate programs may require third-party verification, so ensure your documentation is complete.
• Maintenance schedules: Follow the manufacturer’s recommendations for recalibration, typically every 12–18 months. In high-traffic or harsh environments, more frequent checks may be necessary. Keep track of maintenance intervals to ensure timely recalibration.

Store all records in both digital and physical formats for easy access during audits or rebate applications. Include photos of sensor installations, diagrams of coverage areas, and notes on any special calibration considerations. These detailed records will provide a solid foundation for ongoing performance checks and future recalibrations.

Checking Placement and Coverage

Once sensors are calibrated, their placement plays a crucial role in ensuring they perform effectively and provide proper coverage.

Best Placement Strategies

To get the most out of your sensors, it’s essential to understand how the environment impacts detection and adjust your setup accordingly.

• Ceiling-mounted sensors are ideal for commercial spaces. For instance, PIR sensors should be installed between 8 and 12 feet high in offices to monitor walkways and work areas. In warehouses or other spaces with high ceilings, mounting sensors up to 20 feet is possible, though this may reduce sensitivity at ground level. Ultrasonic sensors, on the other hand, require careful positioning to avoid interference from metal shelving or equipment.
• Wall-mounted sensors work well in areas like hallways, restrooms, or smaller offices. Placing them 6 to 8 feet high on walls perpendicular to traffic flow improves motion detection. If you're using dual-technology sensors (combining PIR and ultrasonic), wall mounting can enhance their performance, particularly in irregularly shaped rooms.
• Corner placement can maximize coverage in rectangular spaces. However, avoid installing sensors above large furniture, equipment, or partition walls, as these can block the detection area.

Keep sensors away from HVAC vents to prevent false triggers. Similarly, in rooms with large windows, mounting sensors on interior walls minimizes disruptions caused by sunlight or temperature changes. For industrial environments, choose sensors designed to handle dust and vibration, but remember that protective housings may alter their detection patterns.

Finally, always test the installed sensor to confirm it covers the intended area effectively.

Measuring Coverage Areas

Measuring a sensor’s coverage area helps ensure it’s performing as expected and highlights any potential issues.

• Create a floor plan grid, such as 3-foot squares, to test systematically. Use tools like a laser measure or tape measure to mark test points, and record the sensor’s mounting height and angle for reference.
• Test the sensor’s field of view by walking through each grid square at a normal pace while observing its response. PIR sensors typically detect motion within a 90° to 180° range, while ultrasonic sensors can often provide nearly 360° coverage. Walk along the edges of the claimed detection zone to identify any inconsistencies.
• Check the detection range by timing sensor responses at various points. A well-functioning sensor should activate within 1–2 seconds. If response times vary, this could indicate weak coverage in certain areas.
• Document your findings on your floor plan with sketches or photos, noting areas with strong detection and any blind spots.

Once measurements are complete, address any gaps to ensure the sensor system operates smoothly.

Reducing Blind Spots

Blind spots can lead to sensors failing to activate when needed or deactivating while spaces are still occupied.

• Reposition sensors to avoid obstructions like furniture, equipment, or partition walls. Overlapping coverage by 10–20% can help eliminate blind spots, but too much overlap can create overly sensitive detection zones.
• Mounting height matters. Sensors installed too high may miss subtle movements like typing or reading, while those mounted too low may not cover enough area. For spaces with varying ceiling heights, such as mezzanines or sunken areas, consider using separate sensors for each level.
• Pay close attention to the edges of rooms, corners, and walls, as these areas often have weaker sensitivity. Supplement with additional sensors if necessary.
• Different sensor types detect movement differently. PIR sensors are better at picking up motion across their field of view but may struggle with movement directly toward or away from them. Ultrasonic sensors are more versatile in detecting various motions but can be overly sensitive to non-occupancy triggers like air movement or vibrations. Proper placement is key to balancing sensitivity and accuracy.

Regularly auditing sensor coverage - quarterly walk-throughs, for example - can help identify new blind spots caused by changes in furniture layout, equipment placement, or room use. This keeps your sensor system operating efficiently over time.

sbb-itb-86fe545

Measuring Performance and Reliability

Keeping track of sensor performance over time is crucial for ensuring they operate effectively and deliver consistent energy savings. By monitoring key metrics, you not only validate current performance but also gather insights for future maintenance and system upgrades.

Key Performance Metrics

When evaluating sensor performance, focus on these critical benchmarks:

• Detection accuracy: Ensure sensors quickly and reliably detect occupancy. Delays might signal the need for recalibration or repositioning.
• False trigger frequency: Pay attention to instances where sensors activate lighting unnecessarily, such as when no one is present. This could be caused by interference from HVAC systems or other environmental factors, which may require sensitivity adjustments or repositioning.
• Response time consistency: Check that response times remain uniform across the detection zone to catch any gradual performance drift.
• Hold time accuracy: Make sure lights stay on long enough after detecting movement. If they turn off too quickly, extending the hold time may be necessary.

Long-Term Testing Methods

After initial calibration and placement, ongoing performance checks are essential. Here are some strategies for long-term testing:

• Regular walk-throughs: Conduct periodic tests to verify activation, hold time, and overall functionality. Testing at different times of day can help account for varying lighting conditions and activity levels.
• Seasonal tracking: Be aware that sensor behavior can shift with seasonal changes. Factors like furniture rearrangements, new equipment, or HVAC adjustments might impact performance, so keep track of these changes.
• Performance logging: Maintain detailed records of each sensor’s model, installation date, calibration settings, and any maintenance performed. A well-kept log simplifies troubleshooting and helps with future upgrades.
• Automated monitoring: Opt for sensors with real-time data reporting to quickly identify and address issues.
• Utility bill analysis: Compare utility bills before and after installation to assess long-term energy savings. Significant deviations from expected savings could indicate sensor malfunctions.

Using Data for Performance Improvements

By combining initial calibration records with long-term data, you can make targeted improvements to your system:

• Calibration adjustments: Use performance logs to fine-tune sensitivity and detection patterns, addressing issues like false activations or missed detections.
• Replacement planning: Rely on actual performance data, rather than just age, to determine when sensors need replacing. This ensures your system stays efficient and reliable.
• Informed system expansion: Analyze data to identify which sensor models and placements work best in your facility. This information is invaluable when expanding or upgrading your system.
• Energy audit preparation: Detailed sensor performance records can support energy audits, utility rebate applications, and certifications by demonstrating that your sensors are functioning as intended.
• Staff training: If recurring issues arise, train staff on proper sensor operation to minimize errors and improve overall system performance.

Recording and Reporting Results

Accurate documentation is critical when it comes to recording sensor data during calibration and testing. This data plays a key role in ensuring compliance, supporting audits, and qualifying for rebates or tax incentives. By converting sensor data into audit-ready records, you can simplify energy audits, streamline rebate applications, and meet the requirements for tax incentive programs.

Required Documentation for Audits

Energy audits require detailed records that demonstrate your occupancy sensors are delivering the expected energy savings. Start with calibration logs - these should include timestamps, sensitivity settings, and any adjustments made. These logs prove that your sensors operate within the manufacturer’s guidelines and maintain consistent performance over time.

Another essential piece of documentation is placement diagrams. These diagrams provide a visual representation of sensor installations, including floor plans that detail exact sensor locations, coverage zones, and any obstacles that could impact detection patterns. Be sure to highlight areas where blind spots were identified and resolved, as this showcases efforts to optimize the system.

Lastly, performance summaries tie all the data together. These summaries should clearly present key metrics such as:

• Detection accuracy rates
• False trigger frequencies
• Response times
• Hold time consistency
• Energy consumption data before and after sensor installation

Keeping sensor settings and placement records up to date is equally important. This ensures continuity and provides a comprehensive understanding of the building’s control systems.

Utility Rebate and Tax Deduction Support

Accurate sensor performance records are essential for applications related to utility rebates and Section 179D tax deductions. For Section 179D, documentation must demonstrate a 25% reduction in annual energy costs, as outlined by ASHRAE Standard 90.1.

The Alternative Measurement Pathway places even greater emphasis on documentation. This approach requires measured site energy use intensity (EUI) data from both before and after the installation of occupancy sensors. Your performance logs form the foundation for these calculations, proving how the sensors contribute to energy savings.

Utility companies also rely on detailed sensor documentation when processing rebate applications. Calibration records, coverage area measurements, and performance tracking data serve as evidence that your sensors are functioning as intended. Some utilities may even request ongoing performance reports to confirm that rebated equipment continues to deliver the promised energy savings.

Working with Experts

To ensure your documentation meets all necessary standards for audits, rebates, and tax incentives, consider working with professionals like Luminate Lighting Group. Their expertise in Section 179D compliance can help you structure your records to maximize tax deduction opportunities.

Experienced professionals can streamline the entire documentation process. They assist in organizing sensor performance data into formats that auditors and utility representatives expect, reducing the chances of delays or rejections caused by incomplete records.

With extensive knowledge of utility rebate programs across various regions, experts can identify specific documentation requirements for each program. They can review your sensor evaluation records before submission, addressing any gaps that might hinder approval. This proactive approach not only saves time but also boosts your chances of securing available incentives.

Additionally, experts often provide access to advanced monitoring tools and automated reporting systems. These systems continuously track sensor performance and generate reports tailored to audit or rebate requirements. By automating data compilation, you minimize errors and eliminate the need for manual reporting, making the process more efficient and reliable.

Key Takeaways

Summary of Evaluation Steps

Evaluating occupancy sensors effectively involves consistent calibration, strategic placement, and regular performance monitoring. The process typically unfolds in three main phases:

• Calibration and testing: Fine-tune sensitivity settings, time delays, and coverage patterns while recording baseline performance metrics for reference.
• Placement and coverage assessment: Identify and address blind spots, expand detection zones, and ensure reliable occupancy detection throughout the space.
• Performance monitoring: Measure detection accuracy, response times, and false trigger rates to provide data for energy audits and incentive programs.

By continuously monitoring these factors, you can uncover trends that guide maintenance efforts and fine-tune system performance over time.

Benefits of Regular Maintenance

Once sensors are properly evaluated, regular maintenance becomes essential to keeping them running efficiently. Routine upkeep not only extends the life of the sensors but also ensures they deliver consistent energy savings. This is especially important for meeting ASHRAE Standard 90.1 requirements.

Keeping sensors in top condition helps avoid costly replacements and ensures ongoing compliance with energy efficiency standards. For facilities aiming to qualify for Section 179D tax deductions, maintaining detailed records of energy performance improvements is critical. Partnering with reliable experts can make this process much smoother.

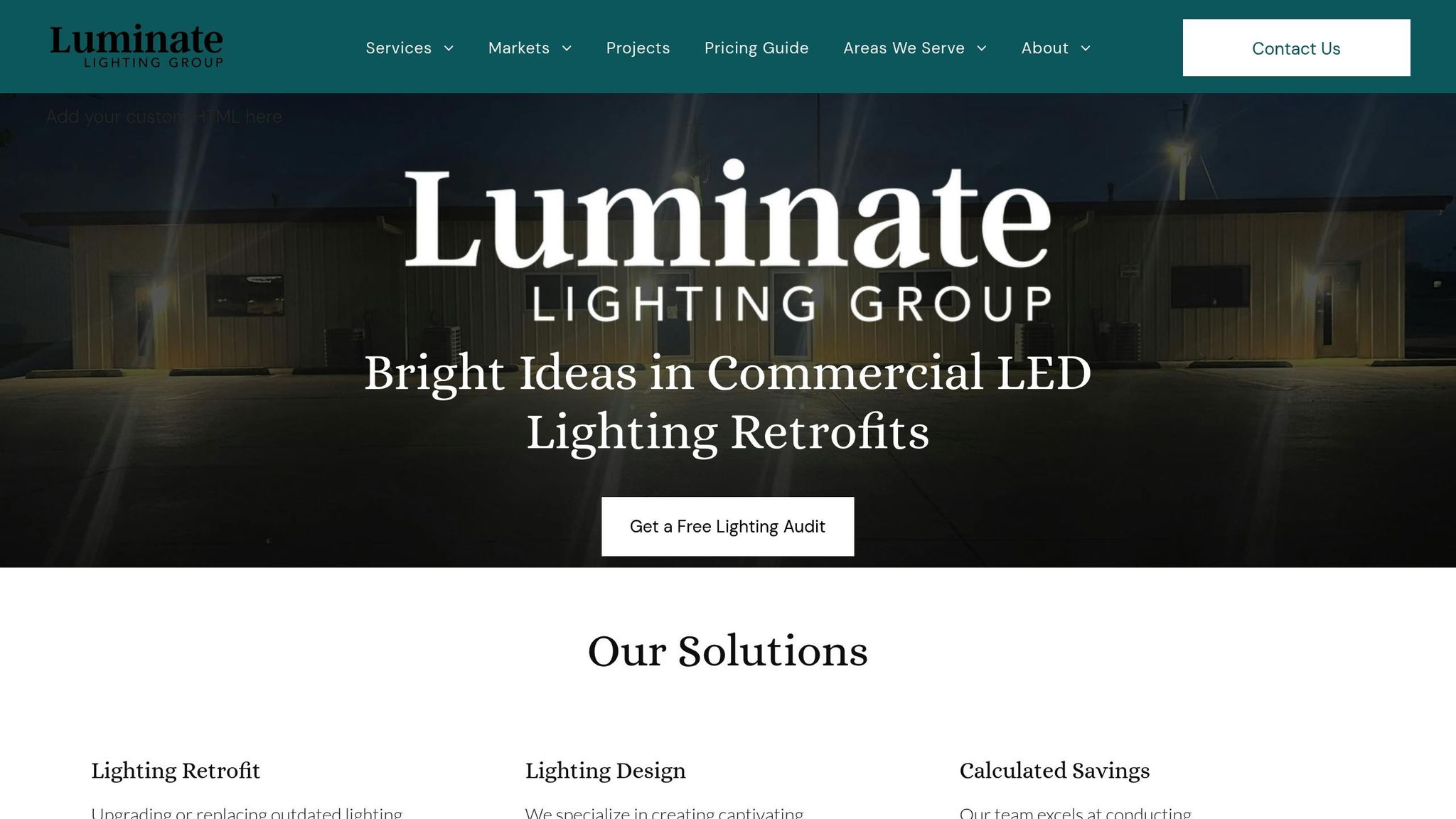

Partnering with Luminate Lighting Group

A thorough sensor evaluation program benefits from expert calibration, precise performance analysis, and accurate compliance documentation. Professional guidance ensures you’re getting the most out of your sensors.

Luminate Lighting Group specializes in occupancy sensor optimization, helping commercial facilities maximize their energy efficiency investments. Their team offers free lighting audits for qualifying commercial and industrial spaces, providing insights into sensor performance. These assessments highlight areas for improved calibration, better placement, and the elimination of blind spots - all of which directly contribute to energy savings.

Additionally, Luminate Lighting Group simplifies the complex documentation needed for utility rebates and Section 179D tax deductions. Their expertise ensures your records meet rebate criteria and helps streamline the approval process, making it easier to secure valuable incentives.

FAQs

How often should I recalibrate occupancy sensors to maintain efficiency and meet energy standards?

To ensure occupancy sensors operate effectively and comply with U.S. energy standards, it's a good idea to recalibrate them every 3 to 5 years. This routine adjustment helps maintain their accuracy in detecting movement, ensures proper coverage, and keeps energy savings on track.

However, if there are changes in the environment - like new furniture arrangements, renovations, or altered usage patterns - you might need to recalibrate them sooner. Regular inspections can help spot when tweaks are necessary to keep everything running smoothly.

What are common mistakes to avoid when placing occupancy sensors to ensure optimal performance and energy efficiency?

Improperly placing occupancy sensors can seriously affect how well they work and how much energy they save. A common issue is mounting sensors too high on walls or ceilings, which limits their ability to detect movement closer to the ground - like at desks or seating areas. Another frequent mistake is installing them behind furniture, shelves, or partitions, which blocks their detection range. This can result in missed activity and wasted energy.

To get the most out of your sensors, install them at the recommended height in spots free from obstructions. Proper placement ensures better motion detection, helping your lighting system run more efficiently while cutting down on energy costs.

How do detailed occupancy sensor records help qualify for utility rebates and Section 179D tax deductions?

Keeping thorough records of how your occupancy sensors perform is a must if you want to qualify for utility rebates or tax deductions like Section 179D. These records serve as proof of your energy-efficient upgrades and confirm that your system meets the required energy savings benchmarks.

With proper documentation, you can show compliance with standards that allow for deductions of up to $1.80 per square foot. Plus, it simplifies audits and verification processes, making it easier to secure these benefits. For building owners and designers, this means not just meeting eligibility requirements, but also maximizing financial rewards.
